參數單軌升降貨梯廠房倉庫簡易載貨電動液壓貨梯 導軌式升降平臺

濟南斯特萊機械導軌式升降機是一種非剪叉式液壓升降機械設備。用于二三層工業廠房，餐廳，酒樓樓層間的貨物傳輸·低高度在150-300mm，尤其適合不能開挖地坑的工作場所，并且無須上部吊點，形式多樣化（單柱，雙柱，四柱）。設備運行平穩，導軌式升降機的導軌一般為槽鋼、工字鋼，方管焊接制成，操作簡單可靠，貨物傳輸經濟便捷。 不能到達要求的場合等比較難解決的狹小空間，可以量身打造率的送貨平臺，產品液壓系統設置防墜、上下層門互動連鎖，各樓層和升降臺工作臺面均可設置操作按鈕，實現多點控制。產品結構堅固，承載量大，升降平穩，安裝維護簡單方便，是經濟實用的低樓層間替代電梯的理想貨物輸送設備。根據升降臺的安裝環境和使用要求，選擇不同的可選配置，可取得更好的使用效果。 故障率低：由于采用了的液壓系統，且有良好的控制方式,電梯運行故障率可將至低。 耗電量少：液壓電梯下行時，靠自重產生的壓力驅動，大幅度節能。

單軌升降貨梯廠房倉庫簡易載貨電動液壓貨梯 導軌式升降平臺

The guideway elevator is a kind of non-shear hydraulic lifting and lifting mechanism. Layer used for secondary and tertiary industrial workshop, restaurant, wine shop floor between the transport of goods, the minimum height from 150-150 mm, particularly suited to can't work of the excavation pit, and do not need the upper lifting point, in the form of diversification (single column and double column, the four pillars). The equipment is running smoothly, the guide rails of the guide type elevator are generally made of channel steel, steel, and tube welding, the operation is simple and reliable, and the goods are economical and convenient.

Cannot reach the requirements of the occasion, such as difficult to solve in the narrow space, can make the efficient delivery platform, product set for hydraulic system, the door on the interactive chain, floors and lifting platform work table can set operation buttons, achieve multipoint control. The product structure is strong, the load is large, the lift is stable, the installation maintenance is simple and convenient, is the economical and practical low floor space to replace the elevator's ideal cargo transport equipment. According to the installation environment and usage requirements of the elevating platform, different optional configurations are selected for better use.

The failure rate is low: because of the advanced hydraulic system, and good control mode, the failure rate of the elevator will be lowest.

Low power consumption: when the hydraulic elevator is down, it is driven by the pressure of self-gravity, and it is very efficient.

一、技術參數及報價如下：1. 規格型號：SJD0.5-72. 臺面尺寸：1500*1500mm3. 有效起升高度：7000mm4. 額定載荷：≥500KG5. 起升速度：4 —6 米/ / 分鐘6. 系統工作壓力：≤16 兆帕7. 動力源：組合式液壓齒輪泵，電機功率 4 KW，AC380V（組合泵站）平臺液壓泵站，加裝應急下降閥，停電時可手動下降，溢流閥可防止上升時壓力過高，起到超載保護功能 。8. 電器： 德力西電器控制系統9. 執行單元：液壓油缸： 80/ /5 55 1 1 支，關鍵密封件采用 日本 “ NOK ” ，10. 導軌材料：60*60*4mm 矩管 （Q235C）,組合件11. 臺面材料：100×50×4m 矩形管 （Q235C）,組合件12. 拉動鏈條：16A,2 條13. 同步鋼絲繩：?10 鋼絲繩，2 條14. 導向及上升機構：各滾輪內部加裝各種型號軸承，提高使用壽命。15. 臺面鋪板：4mm 花紋鋼板實拍

COLORS

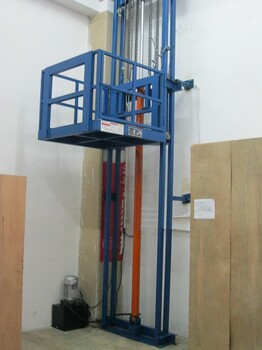

A小型單杠實拍圖 單軌升降貨梯廠房倉庫簡易載貨電動液壓貨梯 導軌式升降平臺POSITIVE

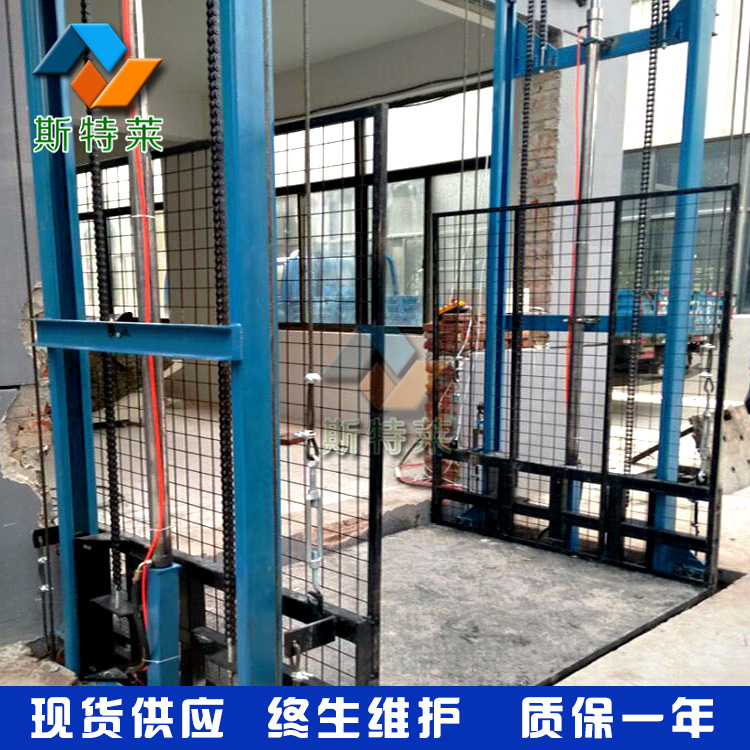

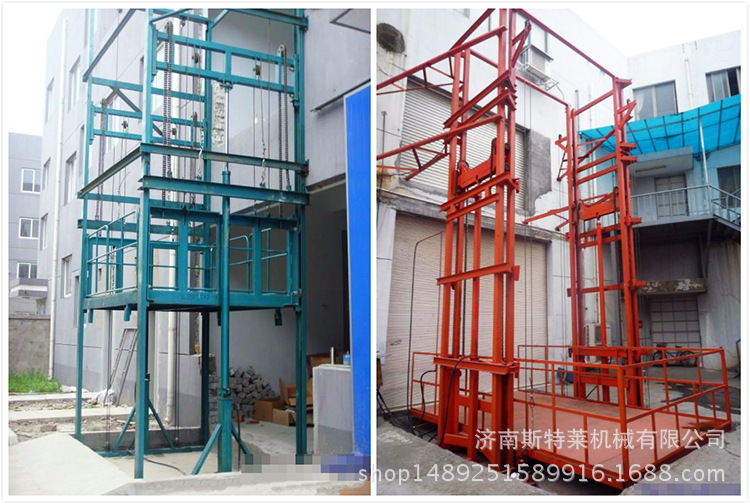

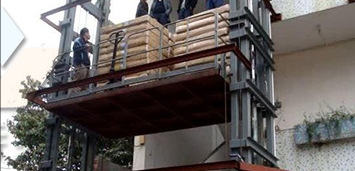

C雙杠實拍圖升降貨梯 導軌式液壓升降機 升降平臺 簡易鏈條貨梯SIDE

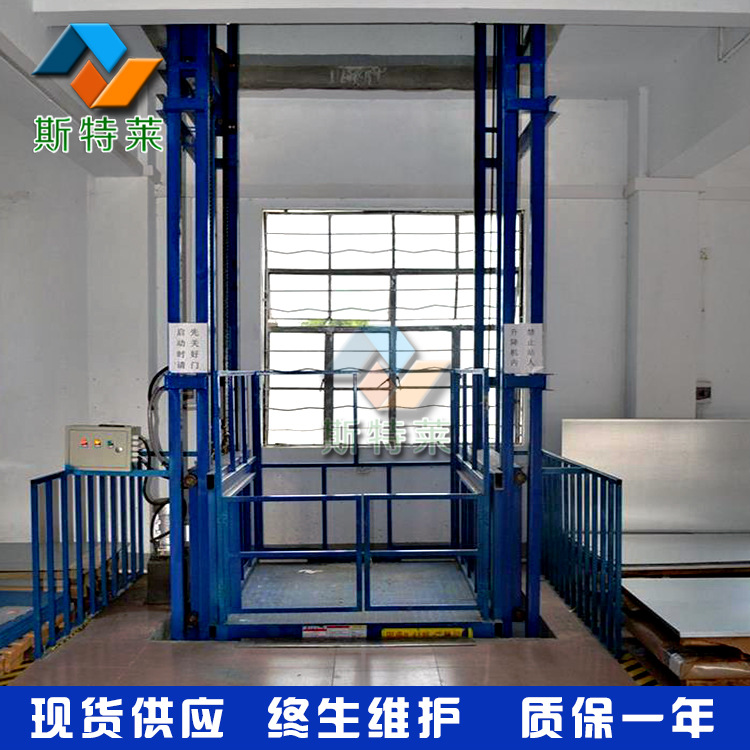

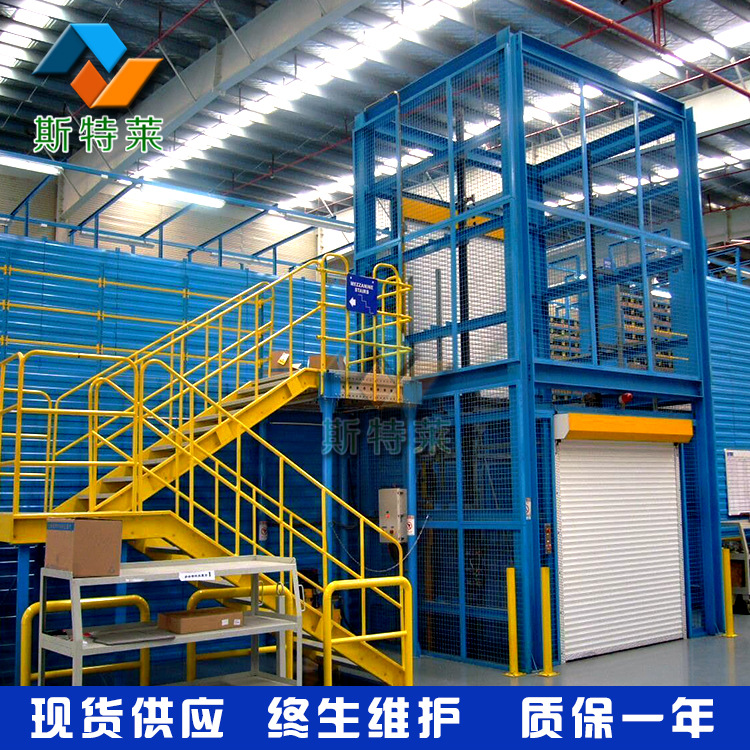

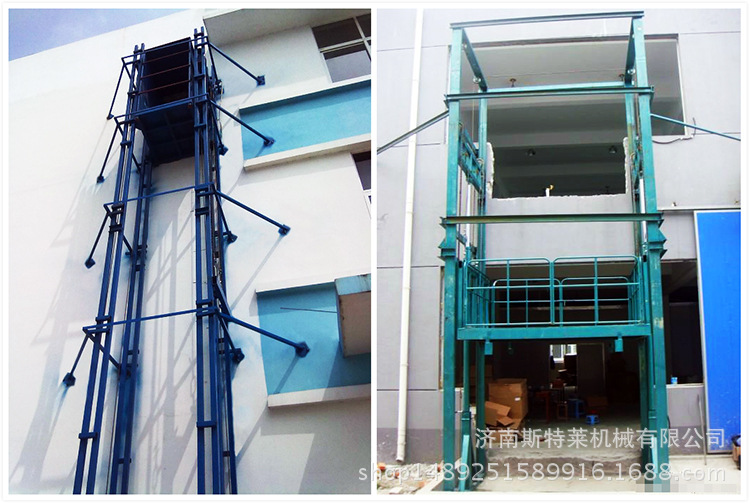

C升降貨梯 單軌升降貨梯廠房倉庫簡易載貨電動液壓貨梯 導軌式升降平臺展示圖CUSTOM

產品細節

DETAILS

安裝適應性強 可安裝在惡劣環境及一般的防爆場所

產品應用范圍廣 適合于大多數行業的層高間貨物運輸

配置靈活 可根據不同安裝環境和使用要求，靈活配置平臺尺寸及進出口方位等

較好的經濟型 較少的購買價格和維護費用，不需要建設機房，節約建筑預算。全閥，充分保障運行安全。

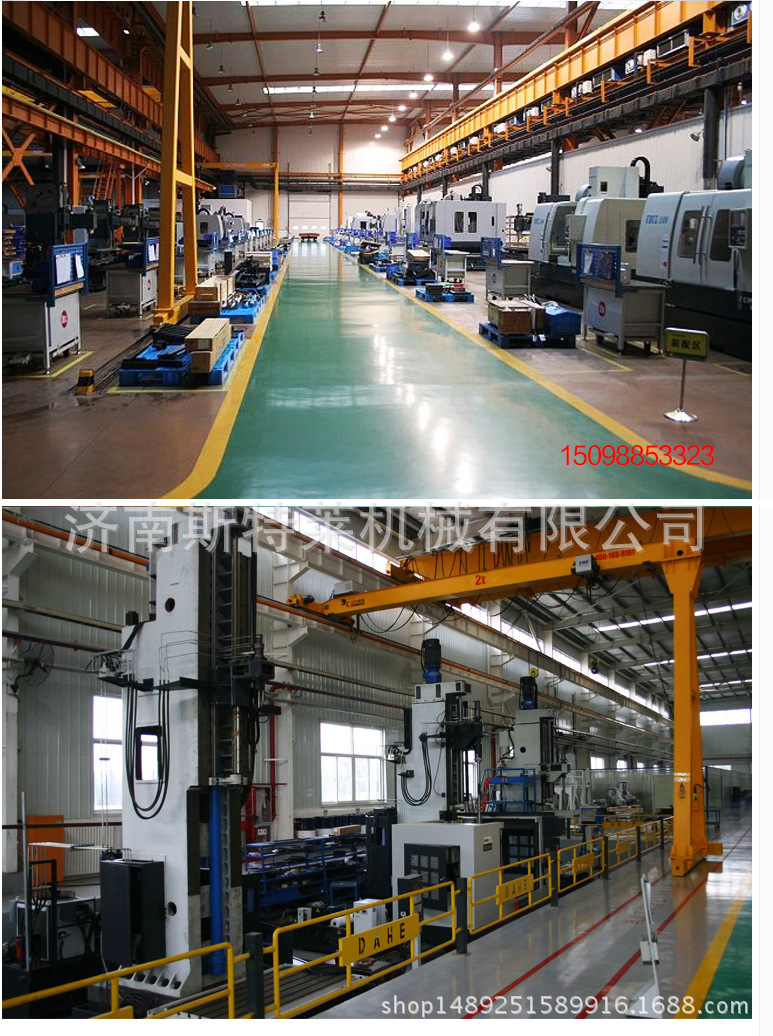

廠商風貌

INSTALL
